• Model NO.：JH-FC017
• Customized：Non-Customized
• Condition：New
• Size: 1200/1500/1800X850X2350mm：1200,1500,1800X850X2350
• Hinge：304 Stainless Steel Exterior Hinge
• Glass：5mm Anti-Explosion Glass
• Water and Gas Fitting：Toff
• Worktop：19,25mm Epoxy Resin Worktop with Outstanding Edge
• Cup Sink：High Quality PP Cup Sink
• Transport Package：Carton, Wooden Case
• Specification：1200,1500,1800x1000x2275mm
• Trademark：GLORYLAB
• Origin：China
• HS Code：84149020
• Production Capacity：5000sets,Month

Basic Info.

Model NO. JH-FC017 Customized Non-Customized Condition New Size: 1200/1500/1800X850X2350mm 1200/1500/1800X850X2350 Hinge 304 Stainless Steel Exterior Hinge Glass 5mm Anti-Explosion Glass Water and Gas Fitting Toff Worktop 19/25mm Epoxy Resin Worktop with Outstanding Edge Cup Sink High Quality PP Cup Sink Transport Package Carton, Wooden Case Specification 1200/1500/1800x1000x2275mm Trademark GLORYLAB Origin China HS Code 84149020 Production Capacity 5000sets/Month

Product Description

Type: JH-FC017

Advantage:
1. Designed and manufactured as per US standard ASHRAE110, the highest standard in this field.
which ensures safety performance of our fume hoods and protect scientist from being harmed by toxic
or waste air.
2. Light belt transmission maintain the sash balance and  stability  with lifting force less  than  0.5KG.
bring comfortable experience to each lab operator.
3. 1.0mm/1.2mm cold-rolled  steel  coated  with  Akzonobel  epoxy  powder, excellent  anti-corrosion
performance.
4. Brand accessories of steel fume cupboard are part of integrated product quality.
5. Both CAV and VAV system available as customers' needs.VAV is designed to reduce at least 30%
engery consumption.
6. Various  cabinets  are available for options including floor standing/movable/acid storage/drug/fire
proof cabinet.
7. Excellent capabilities on offering customized fume hoods  to  meet  needs  of clients and local and
actual environment and working requirements.

Material Description of steel fume hood:

Size	LxWxH: 1200/1500/1800x850x2350mm, customized size is workable.
Worktop	19mm/25mm epoxy resin worktop with backsplash, lab grade phenolic resin/trespa/ceramic is optional.
Exterior structure	1.0/1.2mm cold-rolled/galvanized steel sheet coated with epoxy resin powder after acid pickling, phosphating,oil and rust removing.
Interior structure	5mm compact/ceramic fiber panel which is chemical resistant and easy to be dismantled.
Sash	5mm toughened safety/anti-explosive glass,height can be adjustable. Sash can be moved horizontally if necessary. Long aluminum alloy handle is applied.
Storage cabinet	Door: double-layers structure with sound absorbing material inside,keeping noise minimum when door is opened or closed. U-shape 128mm 304 stainless steel handle, long aluminum alloy grab handle.
Color	White, gray, blue or specified by customer
PP cup sink	Polypropylene/ceramic/epoxy resin cup sink.
Standard accessories	Fluorescent lamp insulated from gas, LCD controller, TOFF safe water&gas remote fitting equipped with pipeline and accessories.cup sink, 4 universal/British/European/water proof socket. electrical leakage protection device.
Optional accessories	300W small centrifugal fan/3 meters PVC flexible pipe, France digital controller with sensor.
Power supply	220/380V,50Hz
Face velocity	0.3~0.7m/s
Noise	<60dB
Diameter of exhaust outlet	250mm
Fluorescent lamp	30W


Drawing of fume hood:
Lab accessories of fume hood:

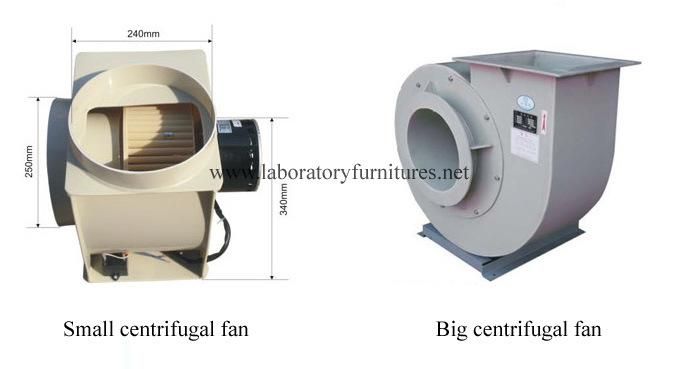

Available fan models:

Control panel:
1. LCD control panel which is capable of controlling ON/OFF of fume hood, lamp and fan. Shutdown time
can be set in advance.
2. French  Digital  controller  showing face velocity,making alarm when encountering with unproper airflow
etc.
3. Top quality VAV system to protect safety of operators by keeping constant  face velocity when the sash
is lifted up or down.

Remark:
1. PP pallets/drawers also can be added in base cabinet connecting with main exhaust ventilation system.
2. Duct and a variety of fans are available if required by customers.
3. We offer dismantled fume hood with economical strong packing helping customer save transport&packing
cost.
4. Floor standing/movable/acid storage/Fire proof/drug cabinet etc are available for your option.
5. Pls tell us if you have any special requirements.

Sample of fume hood ventilation system:

Installation:
We  can  offer  both  assembled  and dismantled fume hoods based on customers' needs. If  cusotmers  are
capable of assembling fume hood, we recomend dismantled model because it would help customers to save
much cost including sea freight and other cost. We can offer installation  drawing/guidance/vedio/online help
as assistance.

Packing:
Carton for FCL(full container) goods, wooden case or thick honeycomb carton for LCL goods.
We always recomend the best packing type for customers according to order volume&goods size&installation
status in the principle of cost saving and safety consideration                                                                    Shipping:
By train/air/sea, LCL or full container as per goods volume&delivery schedule of customers.
Container type: 20GP, 40GP, 40HQ.
Seaport: Shanghai or any specified port in CHINA.

Production Line:
To  ensure  excellent craftmanship / product  precision / production capacity, our  company  is equipped with
a series of automatic imported/CNC facilities including laser/punching/bending/ caving machine, as  well  as
welding robot and automatic coating line etc.Our company has become one of the most outstanding enterpri
-ses in CHINA  who own the most advanced production equipments and huge production scale in our field.

Integrated service:
We offer our customer with a variety of integrated service covering technical consulting,building of whole
ventilation system,VAV system,HVAC,central gas supply system etc in addition to furnish products to our
customers.We are committed to helping our customers to set up safer,more comfort-able labs with energy
saving.
Any question about technical issues regarding all aspects of lab furniture/fume hood or ventilation system
etc,pls feel free to contact with us.We have professional engineers ready to help you.

Welcome to contact with us if you are interested in our fume hood,we would offer a qestionaire in order to
know more about your project before recomending right model.
