• Model NO.：D9 pro
• Movement Structure：Alarm System
• Clock Face Shape：Square
• Usage：Travel Use, Home Use, Hotel
• Bluetooth：3.0
• Power：4PCS 3W
• Multi-Functions：Speaker, Hand Free Call, FM Audio Alarm Snooze
• Compatible：U Disc, USB
• Power Charging：Dual USB
• Certificate：FCC, Ce, RoHS, UL
• Transport Package：Carton
• Trademark：OEM
• Origin：China
• HS Code：85182200
• Production Capacity：50000PCS

Basic Info.

Model NO. D9 pro Movement Structure Alarm System Clock Face Shape Square Usage Travel Use, Home Use, Hotel Bluetooth 3.0 Power 4PCS 3W Multi-Functions Speaker, Hand Free Call, FM Audio Alarm Snooze Compatible U Disc, USB Power Charging Dual USB Certificate FCC, Ce, RoHS, UL Transport Package Carton Trademark OEM Origin China HS Code 85182200 Production Capacity 50000PCS

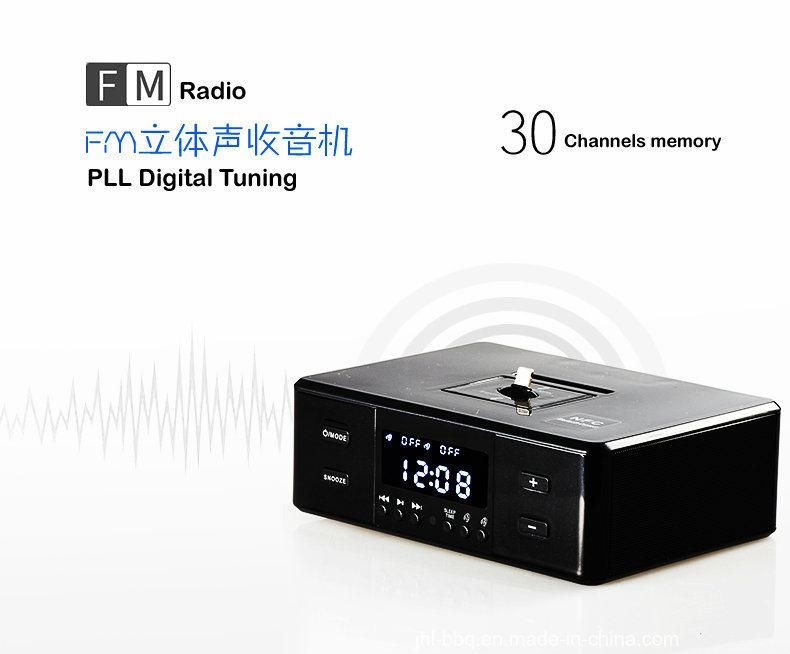

Product Description

The World first smart Blue tooth speaker combining FM radio audio clock dual alarm dual USB Snooze 3 in 1 rotation I phone and  android  commonly used charging dock
Item: D9-pro


Quickly view of the Products
Functions:
combination Bluetooth 3.0 Hand free call,  FM radio, Sleeping mode ,Snooze mode, Dual USB output charging interfaces, AUX (audio), Dual alarm, Temperature display and Full remote control
One smart designed 3 in 1 rotation I phone and  android  commonly used charging dock port united with the speaker, it is the world's  first  smart  speaker combination set.


Dimension:
 ((L) 150mm*(W) 110mm*(H) 50mm
screen size:3.5inch
Net Weight: 340g
 Output power (RMS): 3 W*4pcs stereo horns
Impedance: 4Ω * 4PCS
Language Display: English
FM receiving Frequency:
87.5-108MHz


Frequency response: 100Hz-20 KHz
External Power Supply through adapter:
AC 100-240/50-60HZ
DC output voltage: 5V 2A
Signal to noise ratio:
 FM≥ 45dB
Bluetooth≥ 65dB


 iPod/ipad/iPhone≥ 75dB
 AUX input≥ 80dB.
Display: LCD
Material: ABS
FM Antenna: Built in
Color: Black and milk white, and individual available
Certificate: RoHS,CE, FCC, UL
Memory recording Power supply:3pcs *1.5V AAA Battery
Customize:
Individual logo is available for MOQ1500pcs

Specification and Discreption
-Color: black, white
-Material: ABS
-Dimension:
(L) 150mm*(W) 110mm*(H) 50mm
-Screen size:82*40mm
-Weight: 340g
-Horn : 4pcs*2W
-2 USB  charging interface:


2.1A  and 1.1A
-DC output voltage: 5V 2A
-AC input: 100-240V /50-60HZ
-FM receiving Frequency:
87.5-108MHz
-Battery for memorization of all settings :
 3pcs * AAA battery(not included in the quotation)
-Dimension: (L) 150mm*(W) 110mm*(H) 50mm
-Net weight:340gram


-Built in High Speed Digital Hybrid PLL Frequency Synthesizer, FM radio receiving frequency 87.5-108MHz , stepping range 0.1MHz
-FM Antenna Built in
-Language Display: English
-30 station preset memory function.
-Docking station function:


. Speaker system iPod/ipad/iPhone docking is able to connect to iPod/ipad/iPhone series equipment and playing back the music.
-System support synchronize with iPod/ipad/iPhone forward, upward, pause/play fast forward, fast rewind and menu control function mode etc.
- iPod/ipad/iPhone plug in speaker system docking and under play mode, system will recharge iPod/ipad/iPhone batter automatically.
-Support iPhone, iPhone 3G, iPhone 3GS, iphone4, iphone5, iPod video, iPod Mini, iPod Nano1/Nano2/Nano3, iPod Class, iPod Touch, ipad,ipad2,the new pad(ipad3),ipad4,ipad mini etc.
-Bluetooth NFC function:
-Built-in NFC near field communication, allow blue tooth for quick pairing between your NFC smart phone and the speakers.


-LCD Clock display function: 12H/24H mode setting.
-Alarm function:
. Dual alarm mode set up function.
. Alarm music can be selective sourcing from mobile phone ring tone, or FM radio, iPod/ipad/iPhone music play.
-USB function:
. Dual USB output (1 A and 2.1 A), charging for any mobile phone, tablet pc.
-AUX function:
. Line in audio input, you can connected with MP3/MP4, PC device or PDA etc.
-Sleeping mode function:
. Multiple segment sleeping mode set up ,minimum from 10min,15,30,45,60, maximum up to 60 min can be choose.
-Snooze mode function: Every 9 minutes alarm once, total 3 times.
-Full remote control functions.



Features:
Compact design:combination Bluetooth 3.0 Hand free call,  FM radio, Sleeping mode ,Snooze mode, Dual USB output charging interfaces, AUX (audio), Dual alarm, Temperature display and Full remote control
1,Adapting the advance PLL  technology to receive FM, making Quicker Retrieval the channels.
 2,Dual USB output  of 1.1A / 2.1A, provide power charging to mobile phone ,I pad and etc at the meantime.
3, Dual alarm clock with snooze, alarm volume adjustable or can be keep at the tune you like. When the unit is set on, press the button of ON/OFF repeatedly to turn over the  radio or the clock mode.
4, Built-in temperature sensor module, display external temperature. Fahrenheit (°F)and Celsius (°C) can be easy to change over.
5,LCD clock display, highlight white backlight (12/24 hours to switch) ,without blink makes time easy to view in full view and is gentle on eyes at night.
6, Backlight brightness adjustable in 5 degrees. The backlight can be also turn off .
7,Input Aux line, the External audio such as MP3, MP4, PC output, PDA, computer and other equipment can be connected
8,Specification time can be Set for sleep, the radio and the display will automatically turn off after the specified time.
9,Independent buttons for easy operation, convenient for use.
10, The screen  was designed as mirror and used material to Anti-scraping
11,Full remote control functions.

Noted: AC powered for functions of radio, alarm and time display.
3*AAA batteries(not included) are required to ensure memorization of all settings.


Package:
Each set including:
1-Main body(FCC and CE) :D9 Pro
 2-Manual book:
In English language
 3-Adaptor(UL): 110-240V input, 5V 2A output
 4- 3.5mm Aux line
 5- In color box:
 185*155*63mm



16pcs in one master Carton :
40*29.8*33.5CM /13.5kg

Loading :
20GP container :11200pcs;
